| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | IZUMI |
| إصدار الشهادات: | ISO/TS16949 |
| رقم الموديل: | ISD102U |
| الحد الأدنى لكمية: | 10 قطع |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حزمة محايدة أو حسب طلب العملاء |
| وقت التسليم: | 5-10 أيام |
| شروط الدفع: | د/أ، د/ف، تي/تي، ويسترن يونيون |
| القدرة على العرض: | 1000 جهاز كمبيوتر شخصى / شهر |

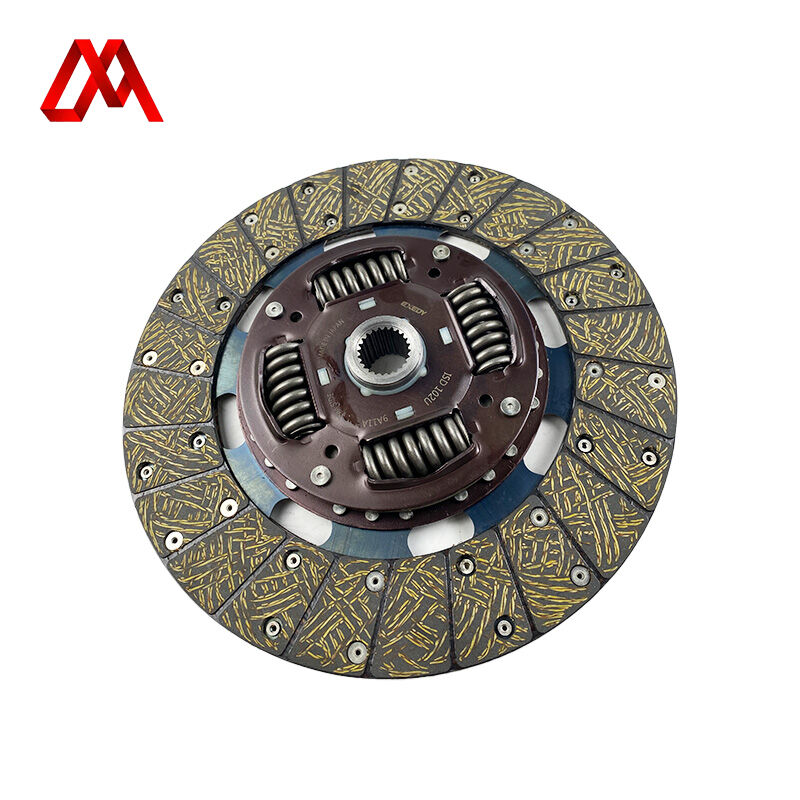

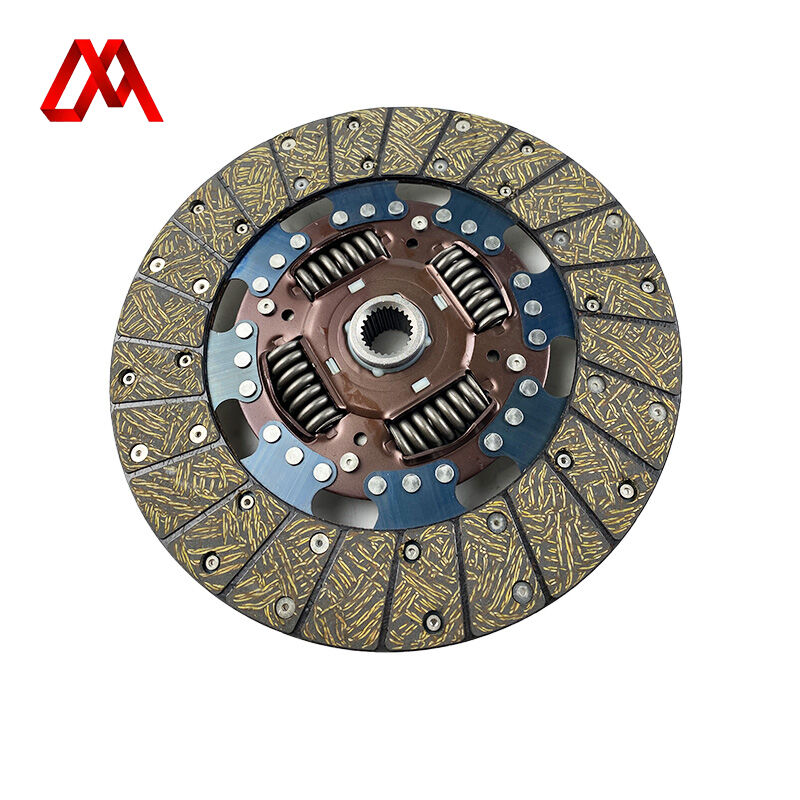

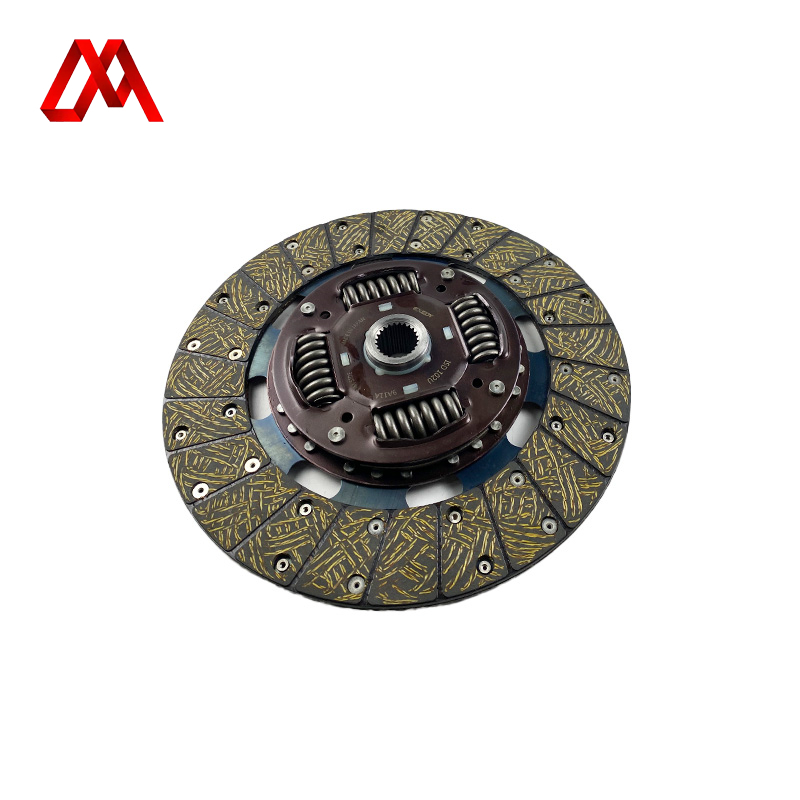

ISD102U Truck Clutch Disc High Performance Truck Replacement Clutch Parts
1.Product Parameter(specification)
|
OE Number: |
8-97083-731-0 |
EXEDY NO.: |
ISD102U |
|
SIZE: |
275*180*24*25.6MM |
Application: |
ISUZU TROOPER |
|
QTY of Spring: |
4 double SPRINGS |
Warranty: |
12Months |
2.Features
1) Clutch plate ISD102U with strong structure.
2) Duralbe non-asbestos facing.

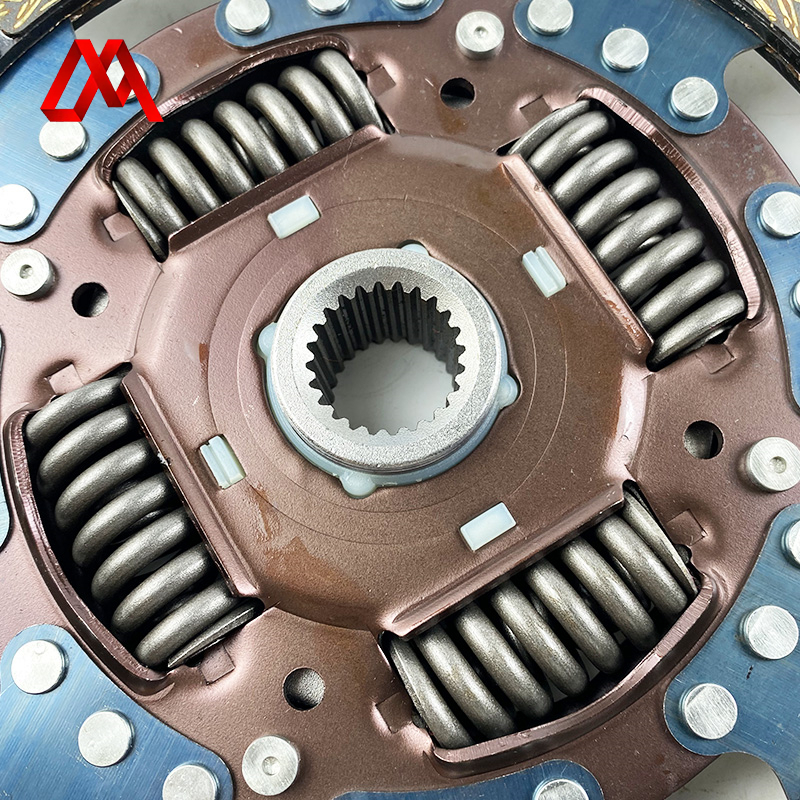

3) Double Springs
4) Effective shock mitigation.
3.Our Advantages
a. Owning Complete punch machines and production system.
b. Self-produced parts make sure of the quality.
c. Strict production & inspection standard.
CLUTCH DISC
| ITEM | BVP NO. | ISUZU GENUINE PART NO. | MODEL | ENGINE |
| 1 | 1-87610119-0 | 1-31240851-1 | FR,FS,FT,FV | 4H,6H |
| 2 | 1-87610143-0 | 1-31240977-2 | FG,GG | 6H |
| 3 | 1-87610141-0 | 1-31240980-0 | CH,CY,CX,FG | 6W |
| 4 | 1-87610140-0 | 1-31260040-1 | FC,FG,GG,LR | 4H,6H |
| 5 | 5-87610108-0 | 8-97070657-0 | NH,NK | 4J |
| 6 | 5-87610107-0 | 8-97310275-0 | NK | 4B |
| 7 | 5-87610080-1 | 8-97362235-1 | NP | 4H |
| 8 | 5-87610086-0 | 8-97368061-0 | TB,TF | 4J |
| 9 | 5-87610125-0 | 8-97368062-0 | TF | 4J |
| 10 | 5-87610084-0 | 8-97368063-0 | NH,NK,NM | 4J |
| 11 | 5-87610049-2 | 8-97377149-0 | NK,NM,NP | 4H,4J |
| 12 | 5-87610078-1 | 8-97389910-0 | NP | 4B,4H,4J |
| 13 | 5-87610077-1 | 8-98037004-2 | NH,NK,NM,NP | 4J,4H |
| 14 | 5-87610083-0 | 8-98080661-0 | NH,NK,NM | 4H |
| 15 | 5-87610092-0 | 8-98164917-0 | NP | 4H |
| 16 | 5-87610105-0 | 8-98164918-0 | NP | 4H |
